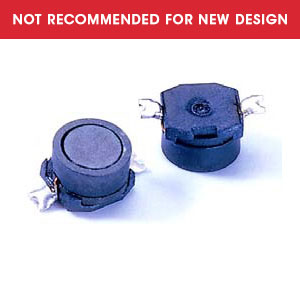

SC3DM Series

Product Status: Obsolete

Description: Product is obsoleted because tooling is worn or not replaceable

Suggested Replacement: No Replacement

Contact Tech Help for assistance

Datasheets and Drawings

SC3DM Series Datasheet

Technical Documents

SMD Inductors (PCN72419) EOL Notice

Email Form

Name *

First

Last

E-mail *

Phone *

Country

State *

Support Type *

Technical Support
Sales Support

Comment or Message *

Name

SPECIFICATIONS

Product Status: Obsolete

Description: Product is obsoleted because tooling is worn or not replaceable

Suggested Replacement: No Replacement

Contact Tech Help for assistance

DOCUMENTS

SC3DM Series Datasheet

SMD Inductors (PCN72419) EOL Notice

SUPPORT

Email Form

Name *

First

Last

E-mail *

Phone *

Country

State *

Support Type *

Technical Support
Sales Support

Comment or Message *

Name

REQUEST QUOTE

Business / Organization *

Name *

First

Last

Email *

Phone *

Address *

Address Line 1

City *

State / Province / Region *

Postal Code *

Country *

Product Line

Part Number

Quantity

Project

EAU

Request *

Website

SC3DM Series

Part Number	Distributor Stock	Inductance (uH)	Current (A)	Saturation (A)	DCR (Ohm)	Test Frequency (KHz)	Max Height (mm)	Shielding	Temperature Rise (A)
SC3DM-101	cancel	100	Low	0.032	0.65	100	3.1	Shielded	0.8
SC3DM-151	cancel	150	Low	0.028	0.8	100	3.1	Shielded	0.68
SC3DM-221	cancel	220	Low	0.022	1.1	100	3.1	Shielded	0.6
SC3DM-331	cancel	330	Low	0.016	1.3	100	3.1	Shielded	0.5
SC3DM-471	cancel	470	Low	0.014	1.9	100	3.1	Shielded	0.42
SC3DM-681	cancel	680	Low	0.011	2.5	100	3.1	Shielded	0.35
SC3DM-102	cancel	1000	Low	0.009	3.4	100	3.1	Shielded	0.27
SC3DM-152	cancel	1500	Low	0.008	6	100	3.1	Shielded	0.22
SC3DM-222	cancel	2200	Low	0.007	9.2	100	3.1	Shielded	0.17
SC3DM-332	cancel	3300	Low	0.005	11.5	100	3.1	Shielded	0.14
