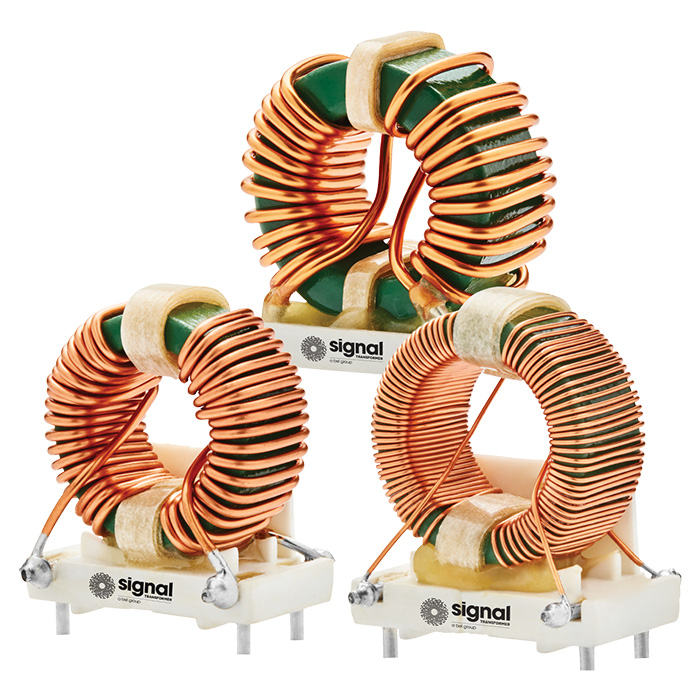

The HCTC Series features a solid carrier base for stable vertical PCB mounting and fixed-pin spacing for easy PCB insertion, high current capacity and excellent EMI suppression, providing flexibility in the selection process with multiple options to choose from and is also available in a design kit. Utilization of the largest possible conductor size for reduced heat rise and selection of low loss core material ensures high efficiency in a small package, while maintaining a competitive cost, for the industrial, electronic, telecommunications, power and electric vehicle (EV) industries.

Specifications

  • Operating temperature -55 to +105°C
  • DC Rated Current: 1.7A to 20.0A
  • Inductance: 1mH to 50mH
  • Dielectric Strength: 1,500V rms
  • UL 94V-0 rated header

Features

  • Design Kit Available
  • Wide range of inductance and current
  • Single layer wound coils
  • High current capacity
  • Excellent EMI suppression
  • Solid vertical mounting base
  • Fixed pin spacing for easy PCB insertion
