High Current Toroidal Choke (HCTC) Design Kit
High Current Toroidal Choke (HCTC) Design Kit

DATASHEET


High Current Toroidal Choke (HCTC) Design Kit

Share

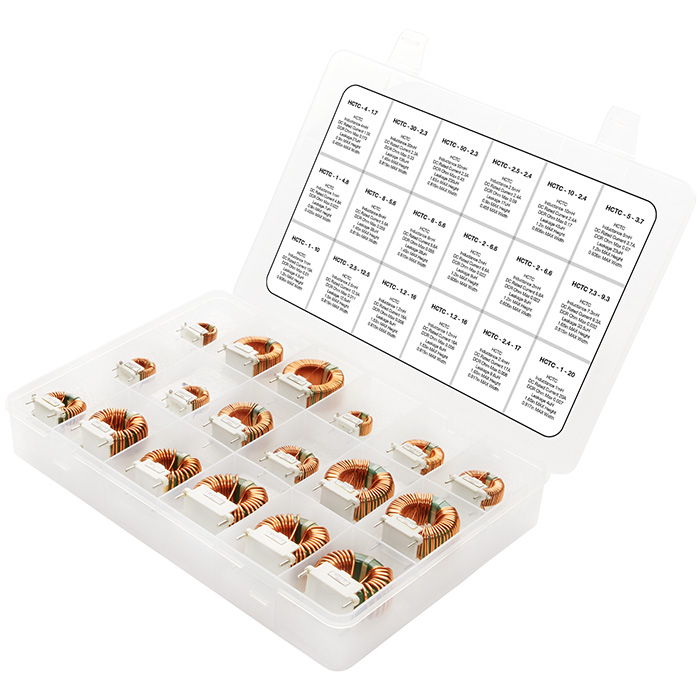

The HCTC Design Kit contains 15 of our most popular HCTC Part Numbers. The HCTC Series features a solid carrier base for stable vertical PCB mounting and fixed-pin spacing for easy PCB insertion, high current capacity and excellent EMI suppression, providing flexibility in the selection process with multiple options to choose from. Utilization of the largest possible conductor size for reduced heat rise and selection of low loss core material ensures high efficiency in a small package, while maintaining a competitive cost, for the industrial, electronic, telecommunications, power and electric vehicle (EV) industries.

Specifications

  • Operating temperature -55 to +105°C
  • Dielectric Strength: 1,500V rms
  • Max. current based on 35°C temperature rise Typ.
  • UL 94V-0 rated header

Features

  • Wide range of inductance and current
  • Single layer wound coils
  • High current capacity
  • Excellent EMI suppression
  • Solid vertical mounting base
  • Fixed pin spacing for easy PCB insertion

Email Form

SPECIFICATIONS

The HCTC Design Kit contains 15 of our most popular HCTC Part Numbers. The HCTC Series features a solid carrier base for stable vertical PCB mounting and fixed-pin spacing for easy PCB insertion, high current capacity and excellent EMI suppression, providing flexibility in the selection process with multiple options to choose from. Utilization of the largest possible conductor size for reduced heat rise and selection of low loss core material ensures high efficiency in a small package, while maintaining a competitive cost, for the industrial, electronic, telecommunications, power and electric vehicle (EV) industries.

Specifications

  • Operating temperature -55 to +105°C
  • Dielectric Strength: 1,500V rms
  • Max. current based on 35°C temperature rise Typ.
  • UL 94V-0 rated header

Features

  • Wide range of inductance and current
  • Single layer wound coils
  • High current capacity
  • Excellent EMI suppression
  • Solid vertical mounting base
  • Fixed pin spacing for easy PCB insertion

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE


Part Number Description Distributor Stock
HCTC-KIT The HCTC Design Kit contains 15 of our most popular HCTC Part Numbers. CHECK STOCK

Design Kit Contents

Part Number Description Quantity
HCTC-1-20 High Current Toroidal Choke - 1 mH, 20 A 1 pc
HCTC-2.4-17 High Current Toroidal Choke - 2.4 mH, 17 A 1 pc
HCTC-1.2-16 High Current Toroidal Choke - 1.2 mH, 16 A 2 pc
HCTC-2.5-12.5 High Current Toroidal Choke - 2.5 mH, 12.5 A 1 pc
HCTC-1-10 High Current Toroidal Choke - 1 mH, 10 A 1 pc
HCTC-7.3-9.3 High Current Toroidal Choke - 7.3 mH, 9.3 A 1 pc
HCTC-2-6.6 High Current Toroidal Choke - 2 mH, 6.6 A 2 pc
HCTC-8-5.6 High Current Toroidal Choke - 8 mH, 5.6 A 2 pc
HCTC-1-4.8 High Current Toroidal Choke - 1 mH, 4.8 A 1 pc
HCTC-5-3.7 High Current Toroidal Choke - 5 mH, 3.7 A 1 pc
HCTC-10-2.4 High Current Toroidal Choke - 10 mH, 2.4 A 1 pc
HCTC-2.5-2.4 High Current Toroidal Choke - 2.5 mH, 2.4 A 1 pc
HCTC-30-2.3 High Current Toroidal Choke - 30 mH, 2.3 A 1 pc
HCTC-50-2.3 High Current Toroidal Choke - 50 mH, 2.3 A 1 pc
HCTC-4-1.7 High Current Toroidal Choke - 4 mH, 1.7 A 1 pc
