HCTC/HCTI Design Kit
HCTC/HCTI Design Kit

DATASHEET


HCTC/HCTI Design Kit

Share

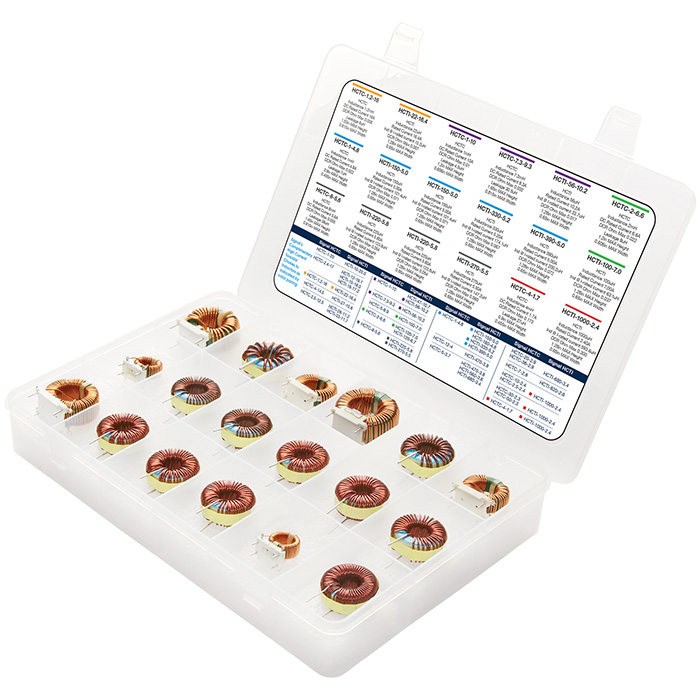

The HCTC/HCTI Design Kit contains 7 of our most popular HCTC and 9 of our most popular HCTI Part Numbers. Designers use the HCTC ans HCTI products for power factory circuits, Input filtering, EMI/RFI Filtering, and Energy Storage applications in Industrial and Consumer goods. This design kit contains a total of 18 high current toroidal chokes and inductors.

Specifications

  • HCTC - Max. current based on 35°C temperature rise Typ.
  • HCTC - Operating temperature -55 to +105°C
  • HCTC - Dielectric Strength: 1,500V rms
  • HCTC - UL 94V-0 rated header
  • HCTI - Inductance Range: 10 uH to 1000 uH
  • HCTI - DC Current Range: 2.4A to 20A

Features

  • HCTC - High current capacity
  • HCTI - Distributed Air Gap for High Energy Storage
  • HCTC - Excellent EMI suppression
  • HCTI - Self-Shielding for low Magnetic Flux Radiation
  • HCTC - Fixed pin spacing for easy PCB insertion
  • HCTI - Vertical PC mounting for optimal PC layout

Email Form

SPECIFICATIONS

The HCTC/HCTI Design Kit contains 7 of our most popular HCTC and 9 of our most popular HCTI Part Numbers. Designers use the HCTC ans HCTI products for power factory circuits, Input filtering, EMI/RFI Filtering, and Energy Storage applications in Industrial and Consumer goods. This design kit contains a total of 18 high current toroidal chokes and inductors.

Specifications

  • HCTC - Max. current based on 35°C temperature rise Typ.
  • HCTC - Operating temperature -55 to +105°C
  • HCTC - Dielectric Strength: 1,500V rms
  • HCTC - UL 94V-0 rated header
  • HCTI - Inductance Range: 10 uH to 1000 uH
  • HCTI - DC Current Range: 2.4A to 20A

Features

  • HCTC - High current capacity
  • HCTI - Distributed Air Gap for High Energy Storage
  • HCTC - Excellent EMI suppression
  • HCTI - Self-Shielding for low Magnetic Flux Radiation
  • HCTC - Fixed pin spacing for easy PCB insertion
  • HCTI - Vertical PC mounting for optimal PC layout

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE


Part Number Description Distributor Stock
HCTI-HCTC-KIT The HCTC/HCTI Design Kit contains 7 of our most popular HCTC and 9 of our most popular HCTI Part Numbers. CHECK STOCK

Design Kit Contents

Part Number Description Quantity
HCTC-1.2-16 High Current Toroidal Choke - 1.2 mH, 16 A 1 pc
HCTC-1-10 High Current Toroidal Choke - 1 mH, 10 A 1 pc
HCTC-7.3-9.3 High Current Toroidal Choke - 7.3 mH, 9.3 A 1 pc
HCTC-2-6.6 High Current Toroidal Choke - 2 mH, 6.6 A 1 pc
HCTC-1-4.8 High Current Toroidal Choke - 1 mH, 4.8 A 1 pc
HCTC-8-5.6 High Current Toroidal Choke - 8 mH, 5.6 A 1 pc
HCTC-4-1.7 High Current Toroidal Choke - 4 mH, 1.7 A 1 pc
HCTI-22-16.4 High Current Toroidal Inductor - 22 uH, 16.4 A 1 pc
HCTI-56-10.2 High Current Toroidal Inductor - 56 uH, 10.2 A 1 pc
HCTI-150-5.0 High Current Toroidal Inductor - 150 uH, 5 A 2 pc
HCTI-330-5.2 High Current Toroidal Inductor - 330 uH, 5.2 A 1 pc
HCTI-390-5.0 High Current Toroidal Inductor - 390 uH, 5 A 1 pc
HCTI-100-7.0 High Current Toroidal Inductor - 100 uH, 7 A 1 pc
HCTI-220-5.8 High Current Toroidal Inductor - 220 uH, 5.8 A 2 pc
HCTI-270-5.5 High Current Toroidal Inductor - 270 uH, 5.5 A 1 pc
HCTI-1000-2.4 High Current Toroidal Inductor - 1000 uH, 2.4 A 1 pc
