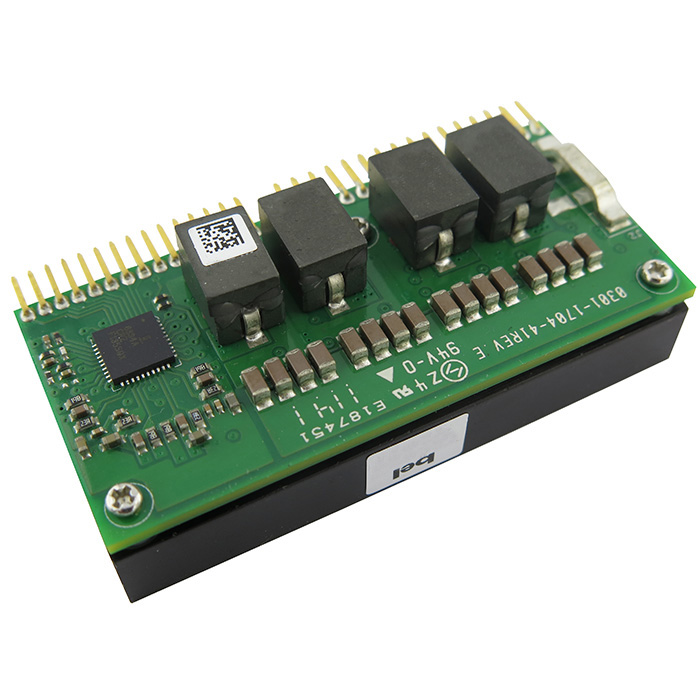

VRP4-CxE1A Series
Share
VRP4-CxE1A0 Series Data Sheet
VRP4-CxE1A Series
| Part Number | Distributor Stock | Drawing/Datasheet | Sample Request | Footprint/Symbol | VRM Specification | Power (W) | Output Voltage (VDC) | Output Current (A) | Voltage Input (VDC) | Operating Temperature (°C) | Dimensions LxWxH (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VRP4-C2E1A0 | cancel |
|
|
VRM 11.1 | 192 | 0.5-1.6 | 120 | 6.5-13.2 | 0 to 70 | 2.4 x 1.1 x 0.8 | |
| VRP4-C1E1A0 | cancel |
|
|
VRM 11.1 | 176 | 0.5-1.6 | 110 | 6.5-13.2 | 0 to 70 | 2.4 x 1.1 x 0.8 | |
| VRP4-C0E1A0 | cancel |
|
|
VRM 11.1 | 160 | 0.5-1.6 | 100 | 6.5-13.2 | 0 to 70 | 2.4 x 1.1 x 0.8 |
