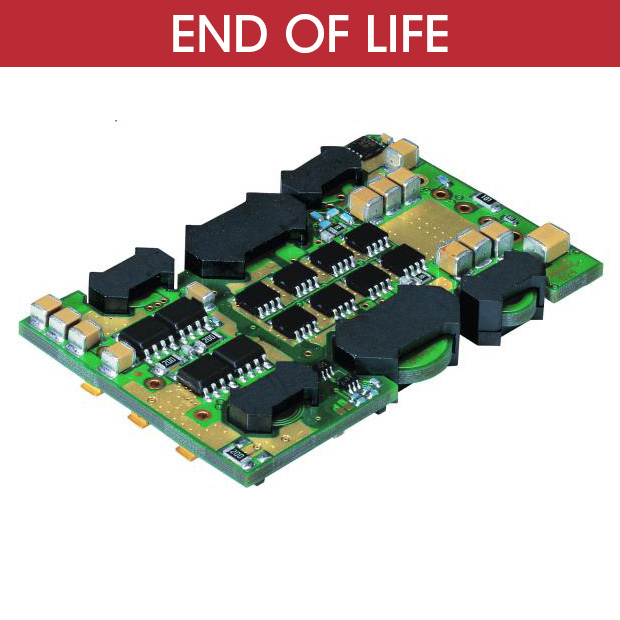

Q24S30033
Share
Specifications
- Delivers up to 30 A
- Higher current capability at 70ºC than existing quarter brick and 30 A half-brick converters
- High efficiency: 88% @ 30 A, 89% @ 15 A
- Low profile: 0.26 [6.6 mm]
- Output voltage trim range: +10%/-20%
Features
- RoHS lead free and lead-solder-exempt products are available
- Starts-up into pre-biased output
- No minimum load required
- No heatsink required
- Fixed frequency operation
- Positive or negative logic ON/OFF option
Datasheets and Drawings
Q24S30033 Data Sheet
Technical Documents
Email Form
Specifications
- Delivers up to 30 A
- Higher current capability at 70ºC than existing quarter brick and 30 A half-brick converters
- High efficiency: 88% @ 30 A, 89% @ 15 A
- Low profile: 0.26 [6.6 mm]
- Output voltage trim range: +10%/-20%
Features
- RoHS lead free and lead-solder-exempt products are available
- Starts-up into pre-biased output
- No minimum load required
- No heatsink required
- Fixed frequency operation
- Positive or negative logic ON/OFF option
