MFLS400 Series
MFLS400 Series

DATASHEET


MFLS400 Series

Share

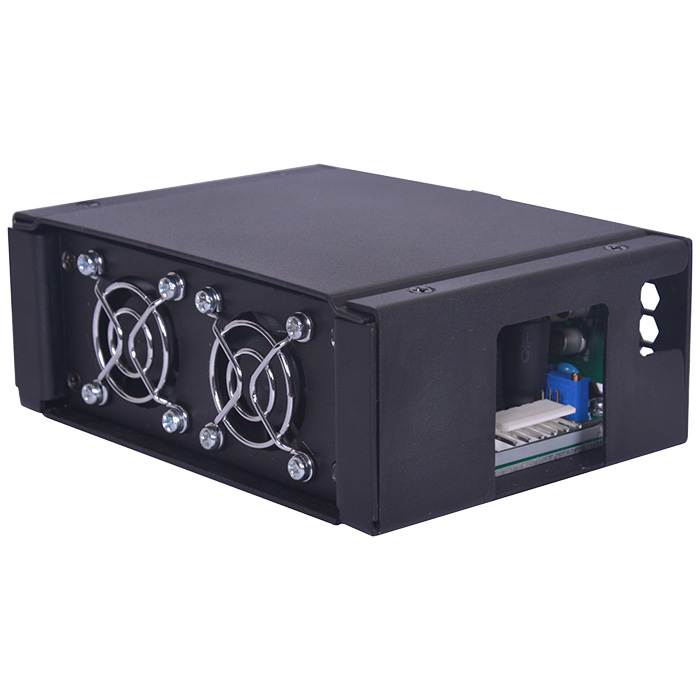

The New FLS400 Series is designed to work with forced air cooling. This is a highly efficient power supply that can deliver up to 400W with air. This new series comes with two options: casing with a side fan and a top fan.

Specifications

  • Output power: 400W
  • Input voltage: 85-264 VAC
  • Input current: 6.3 A max
  • Output voltage: 12V to 58V
  • Efficiency: up to 90%
  • Operating temperature: - 40 to +70°C
  • Dimensions: 5.3 x 4.3 x 1.96 in. (135 x 109 x 50 mm)
  • Application: medical

Features

  • High power density: 23.70W/inch3
  • Meets EN60601-1-2, 4th edition
  • Thermal shut-down feature/dual fusing
  • 2.56m Hours, Telcordia -SR332-issue 3 MTBF
  • Suitable for BF applications

Datasheets and Drawings

Data Sheet MFLS400 Datasheet

Email Form

SPECIFICATIONS

The New FLS400 Series is designed to work with forced air cooling. This is a highly efficient power supply that can deliver up to 400W with air. This new series comes with two options: casing with a side fan and a top fan.

Specifications

  • Output power: 400W
  • Input voltage: 85-264 VAC
  • Input current: 6.3 A max
  • Output voltage: 12V to 58V
  • Efficiency: up to 90%
  • Operating temperature: - 40 to +70°C
  • Dimensions: 5.3 x 4.3 x 1.96 in. (135 x 109 x 50 mm)
  • Application: medical

Features

  • High power density: 23.70W/inch3
  • Meets EN60601-1-2, 4th edition
  • Thermal shut-down feature/dual fusing
  • 2.56m Hours, Telcordia -SR332-issue 3 MTBF
  • Suitable for BF applications
